20 / 5 Ton Electric Workshop Overhead Crane Double Box Type Girder
Introduction:
Double girder bridge crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting transportation. Therefore, the double girder bridge crane is widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals, logistics turnover and other departments and places.
Technical Parameter:
| Cap (t) | 5/ 10 |
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
| Main Dimensions (mm) | H | 1763/1800 |
| H1 | 765 |
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 |
| H4 | 71-552 |
| K | 1400-2000 |
| W | 3400 | 3550 | 5000 |
| B | 5054 | 5204 | 5948 |
| b | 230 |
| Max. Wheel Load (KN) | 72-152 |
| Total Power (KW) | 10-15.5 |
| Lifting Height (m) | 16 |
| Hoisting Speed (m/min) | 5 |
Advantage:
1. Reasonable structure and beautiful appearance
High site utilization, large operation range, wide adaptability, time-saving and labor saving, low noise
2. Excellent performance and large lifting capacity
Light deadweight, small wheel pressure, simple structure, convenient operation and stable operation performance
3. Simple operation and land saving
The height above the track surface is small, occupying small space, saving space
4. Own factory, supporting installation
Customized production according to customer requirements, fast delivery, support for site measurement, installation and after-sales warranty

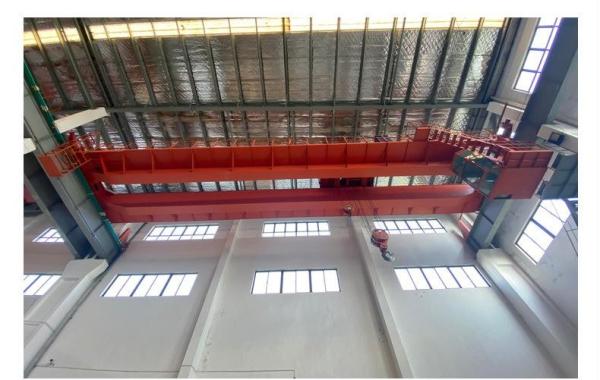

Photos:
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
